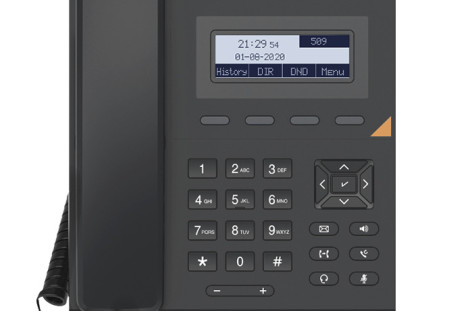

Best IP Phone | AX-200 | Axtel, #7393
The AX-200 desk phone is Axtel’s entry-level IP phone – basic, yet offering functionality that does not differ much from the one found in more advanced models. Remarkable efficiency and smoothness of operation encapsulated by solid construction of high quality materials allow complete reliability during continuous use without the worry of mechanica
Owner
Description
PRODUCT SYMBOL:AX-200
Description
Phone Features
- 1 SIP account
- Call hold, mute, DND
- One-touch speed dial, hotline
- Call forward, call waiting, call transfer
- Redial, call return, auto answer, direct IP call
- 5-way conferencing
- Group listening, SMS, emergency call
- Ring tone selection/provisioning
- Set date time automatically or manually
- Dial plan per account
- RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
- Action URL/URI
Voice Codecs Features
- HD voice, HD handset, HD speaker
- Codecs: iLBC, G.722, G.711(A/μ), Opus
- G.723, G.729AB, G.726-32
- DTMF: In-band, RFC 2833, SIP INFO
- Full-duplex hands-free speakerphone with AEC
- VAD, AGC, CNG, AEC, PLC, AJB
Directory
- Local phonebook up to 1000 entries
- XML/LDAP remote phonebook
- Intelligent search method
- Phonebook search/import/export
- Call history: dialed/received/missed/forwarded
- Black list
IP-PBX Features
- Busy Lamp Field (BLF), bridged Line Appearance(BLA)
- Anonymous call, anonymous call rejection
- Message Waiting Indicator (MWI), voice mail
- Intercom, paging
- Call park, call pickup
- Music on hold
- Hot-desking
Display and Indicator
- 132×48 pixel graphical LCD with backlight
- LED for call and message waiting indication
- Illuminated LEDs for line status information
- Intuitive user interface with icons and soft keys
- National language selection
- Caller ID with name, number
Feature keys
- 6 feature keys: mute, headset, message transfer, redial, speaker
- 4 context-sensitive “soft” keys
- 5 navigation keys, volume control keys
Interface
- Dual-port 10/100M Ethernet
- Power over Ethernet (IEEE 802.3af), class 2
- 1xRJ9 (4P4C) handset port
- 1xRJ9 (4P4C) headset port
Physical Features
- Stand with one angle at 40°
- Wall mountable
- External universal AC adapter :
- AC 100~240V input and DC 5V/1.2A output
- Power consumption (PSU): 1.6~2.6W
- Power consumption (PoE): 2.0~3.2W
- Operating humidity: 10~95%
- Operating temperature: -10~50°C
Management
- Configuration: browser/LCD-Menu/auto-provision
- Auto provision via HTTP/HTTPS FTP/TFTP
- Auto-provision with PnP
- Support SNMP&TR-069
- Reset to factory, restart, reboot
- Local tracing log export, system log
- Phone lock for personal privacy protection
Network and Security
- SIP v1 (RFC2543), v2 (RFC3261)
- SIP server/proxy redundancy
- NAT Traversal: STUN mode
- DHCP/static/PPPoE/IEEE802.1X/open VPN
- HTTP/HTTPS web server
- Time and date synchronization by SNTP
- DNS-NAPTR/DNS-SRV(RFC 3263)
- QoS: 802.1p/Q tagging (VLAN),
- Layer 3 ToS DSCP
- TLS(Transport Layer Security), SRTP, ZRTP
- HTTPS certificate manager
- AES encryption for configuration file
- Digest authentication using MD5/MD5-sess
- IPv6 supported
Two 10/100 Mbps network ports provides you with ability to connect additional devices, such as laptop or PC, allowing one of them to be used for connection to the local network or power supply utilizing PoE (Power over Ethernet) technology. However, if your office building is not equipped with a new generation switch, you can easily use an optional external power supply. The AX-200 allows 1 SIP-line registration and up to five-way conference calling. For those who value comfort and prefer hands-free phone calls, there is a RJ9 port for headset connection.
The desk phone comes with a convenient desk stand, or can also be mounted on a wall. The desk phone will do great in public spaces including hotels, thanks to the built-in Kensington Lock slot which provides anti-theft security and nearly automatic introduction guaranteed by the PnP (Plug&Play) technology and a central management point. This extremely intuitive device with its simplicity and comfort of use will guarantee an absolutely delightful user experience.
Main features
1 SIP account
PoE supply or external power supply
2*10/100 Ethernet ports
5-way conferencing
Plug&Play auto provisioning
RJ9 socket for headset connection
Wall-mountable
IP Phone AX-200
The AX-200 desk phone is Axtel’s entry-level IP phone – basic, yet offering functionality that does not differ much from the one found in more advanced models. Remarkable efficiency and smoothness of operation encapsulated by solid construction of high quality materials allow complete reliability during continuous use without the worry of mechanical damage. Big, graphical display with backlight provides quick and easy visual access to call and message waiting indications.
